Number Of Step

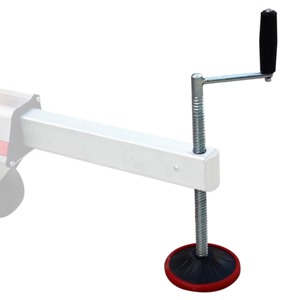

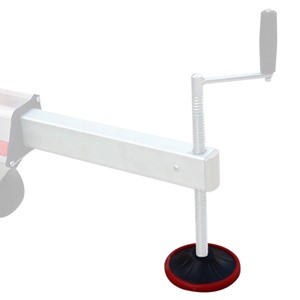

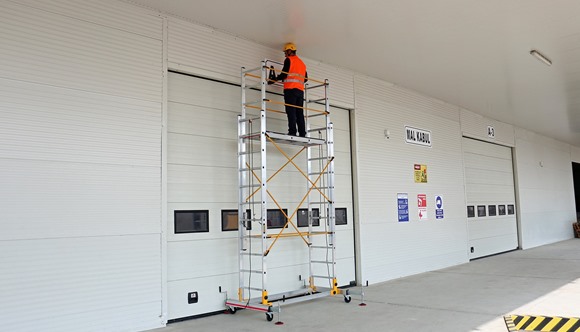

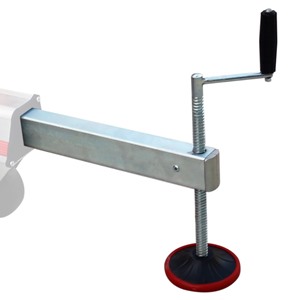

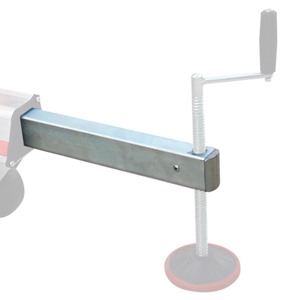

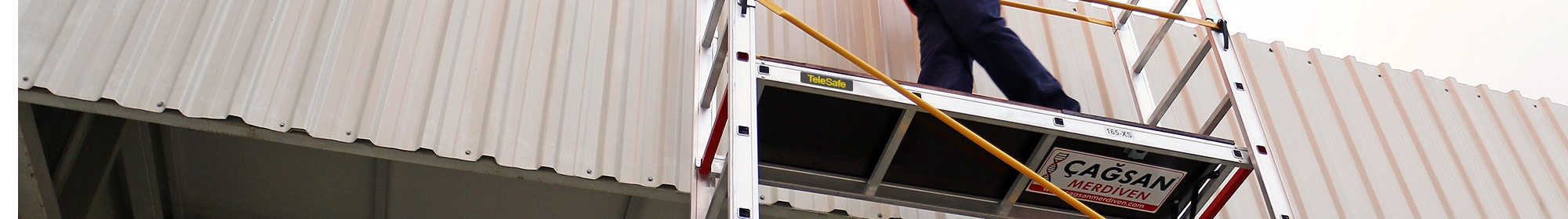

Its height can be easily adjusted with its special hinge system, and it can be used in many areas with its safe, light, easily removable structure. The system, built on solid aluminum construction, is reinforced with steel stabilizers.

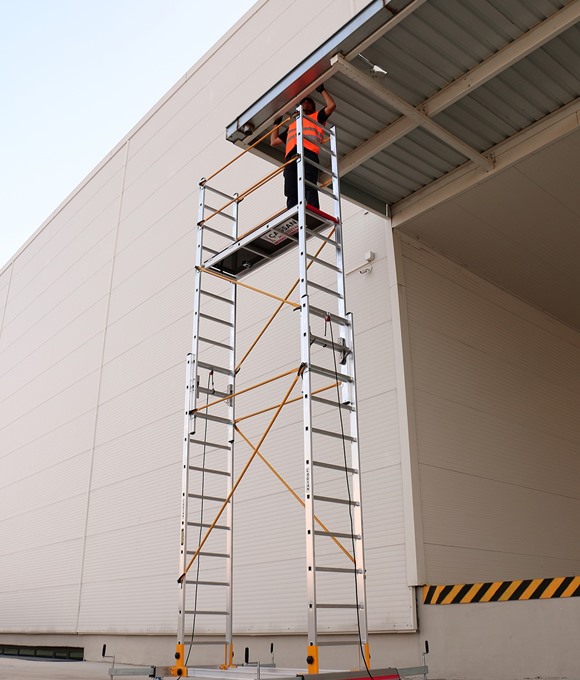

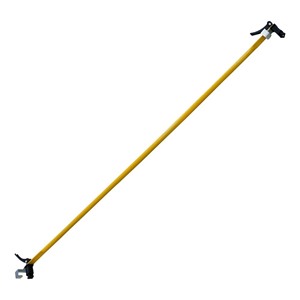

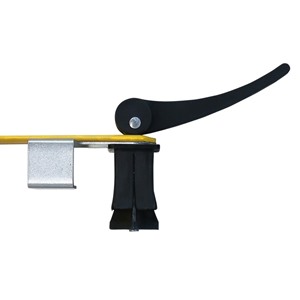

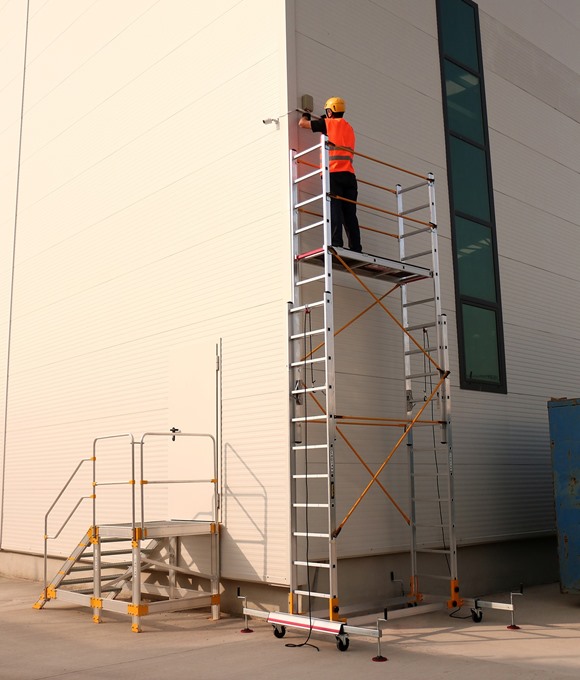

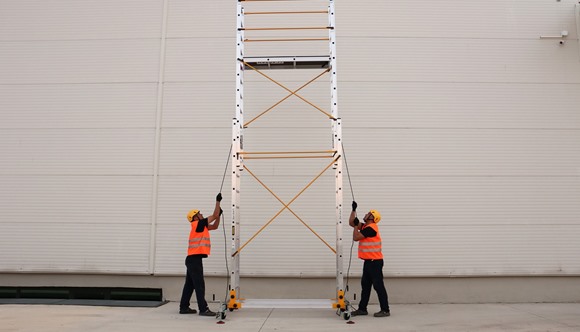

Diagonal and horizontal braces made of iron pipes connect the main ladders of the scaffolding. Thanks to the Q-Lock System, it can be installed very quickly and safely. Platform height and scaffolding height can be adjusted every 28 cm thanks to the rope & pulley system. The trapdoor of the platform enables the user to reach the platform safely. The guardrails with a height of 100 cm. provide a safe area for the user.
Upon request the toeboard can be provided by our company as optional. The platform dimension is 45x155 cm.
| A (m.) | A1 (m.) | C (m.) | B (m.) * | (kg.) | D (cm.) ** | E (W.xL.xH./cm.) | F (W.xL.xH./cm.) | ||
| S004 | 2x8 | 2,50 | 3,90 | 2,75 | 4,55 | 81,4 | 125-215x210 | 60x225x38 | 39x122x46 |
| S005 | 2x10 | 3,05 | 4,95 | 3,83 | 5,63 | 91,0 | 125-215x210 | 60x280x38 | 39x122x46 |
| S006 | 2x11 | 3,34 | 5,54 | 4,42 | 6,22 | 94,2 | 125-215x210 | 60x310x38 | 39x122x46 |
| S007 | 2x13 | 3,87 | 6,35 | 5,23 | 7,03 | 100,6 | 145-235x210 | 60x360x38 | 39x148x46 |
| S008 | 2x15 | 4,41 | 7,17 | 6,05 | 7,85 | 140,0 | 145-235x215 | 60x415x45 | 39x154x46 |
